unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

Product Categories
Shenzhen Ewin Lighting Technology CO., Limited
Contact Now

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

Place of Origin : china

Brand Name : EWIN and OEM

Certification : C-tick, EMC, FCC, LVD, RoHS, SAA, SASO

Model Number : EW-STL-COB-20W-NW

Light Source : LED

Item Type : Track Lights

LED Light Source : COB

Warranty(Years) : 3

Input Voltage(V) : 100-277

Lamp Power(W) : 22

Lamp Luminous Flux(lm) : 1900-2250

Lamp Luminous Efficiency(lm/w) : 120

CRI (Ra>) : 82

Color Temperature(CCT) : 2000-7000K

Working Temperature(℃) : -45 - 45

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum Alloy

Base Type : 2-way, 3-way, 4-way

Application : Shop window

Power Brand : Lifud

Power Efficiency : 87%

Color of housing : Black,white,silver

MOQ : 10PCS

Price : 10-39/pices

Packaging Details : Box of each: 195*130*260mm; Carton for 6pcs: 605*265*410mm.

Delivery Time : 5-8 days

Payment Terms : T/T,Western Union,MoneyGram,Cash

Supply Ability : 1000PCS/Day

Contact Now

Specifications

1.cob led track light
2.CRI: 80, 110-135LM
3.Beam Angle: 30, 60.
4.Connection: 2-way, 3-way, 4-way.



unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

Available watt: 10w, 2*10w

15w,2*15w

20w,2*20w

30w,2*30w

Detail Descriptions:

1.Product features

LED power 20W
Lamp consumption 22W
Output 2200-2500lm
Beam angle 30/50 degree
Input voltage AC100-277V
Frequency Range 50-60HZ
CRI >82
Working Temperature -40°c-65°c
Storage Temperature -25°c-65°c
Color of housing Aluminum,white ot black
Lifespan 50,000+hrs
Certificate CE/ROHS/ERP/SAA/SASO/GS

2.COB parameter

PCB Ceramic
Chip size 14*28mil
Output 2600-3000lm
Chip Qty 300pcs
CRI >82
Voltage 26-28vDC
Current 700mA
Brand options Gosun/Cree/brigelux/Citizen

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

3.Driver parameter

Brand Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
Input AC100-277vAC
Output 18-30vDC,700mA
Power Factor 0.9-0.99
Power Efficiency 86%
Certificate EMC/TUV/UL/SAA/CE/PSA/CQC
Dimmable Triac /Dali /Wi-Fi available

Data Sheet:

Part No. Color CCT Output
EW-STL-COB-20W-WW Warm White 2700K-3300K 2400-2500lm
EW-STL-COB-20-NW Natural white 4000K-4500K 2500-2600lm
EW-STL-COB-20W-CW Cool White 5500K-6500K 2700-2800lm

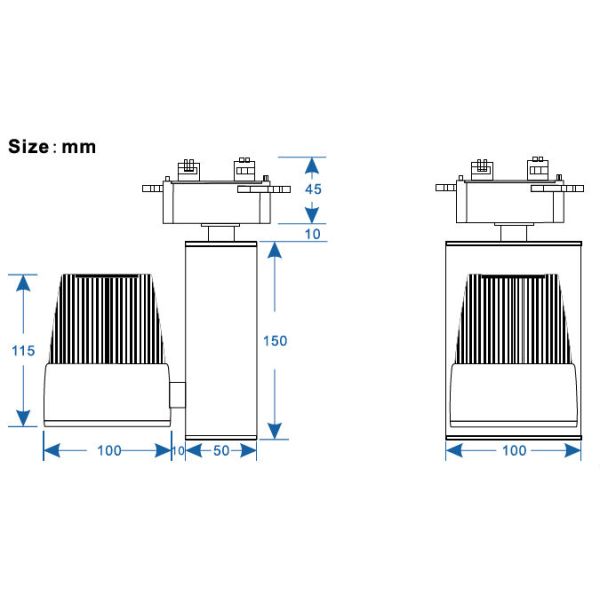

Dimensions(mm):

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

IES Test:(please contact us to get the IES file):

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track lightunique design Euro standard 135lm/w 20w 2400-2700lm cob led track light


Packing:

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light



More Pictures:

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track lightunique design Euro standard 135lm/w 20w 2400-2700lm cob led track lightunique design Euro standard 135lm/w 20w 2400-2700lm cob led track lightunique design Euro standard 135lm/w 20w 2400-2700lm cob led track lightunique design Euro standard 135lm/w 20w 2400-2700lm cob led track lightunique design Euro standard 135lm/w 20w 2400-2700lm cob led track light

unique design Euro standard 135lm/w 20w 2400-2700lm cob led track light
